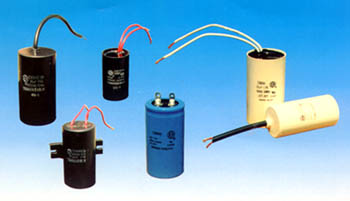

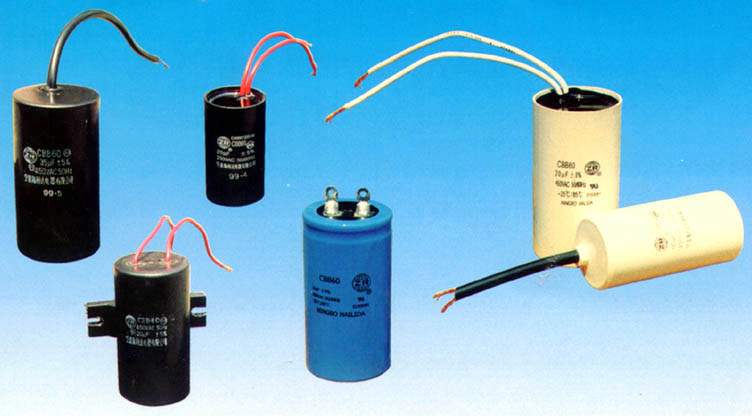

Motor Run Capacitors (Dry Round type) CBB 60 TYPE CAPACITORS
Key Specifications/Special Features:
- Capacitance: 1 to 100uF
- Capacitance tolerance: +/-5% +/-10%
- Working voltage: 135 to 500VAC
- Temperature range: -40 to +70 degrees Celsius
- Lead material: AMP 250 tin-plated brass QCs
- Outer shape: UL 94 V-O fire-retardant round plastic case or aluminum can and epoxy-resin sealed
- Small size, small loss and excellent self-healing property
- Very small dissipation factor, small inherent temperature rise. High insulation resistance.
- Good capacitance stability
- For refrigertors, fans, electric pumps, washing machines, air exhaustors, air-condictioners
Technical Characteristics

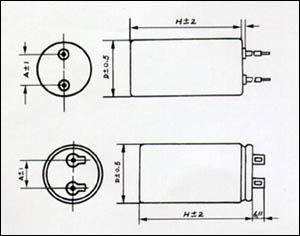

ambient temperature -40~70 degrees Celsius rated voltage 135~500V AC capacitance tolerance +/-5% +/-10% loss tangent <=0.002(50/60Hz) insulation level 2Un+1kVAC not less than 2kVAC Outline dimension
