Hailida Capacitor Factory
  • Motor Run & Start Capacitors (Dry Box type)

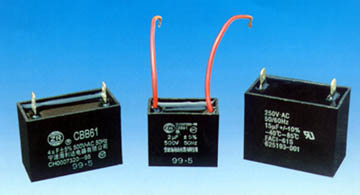

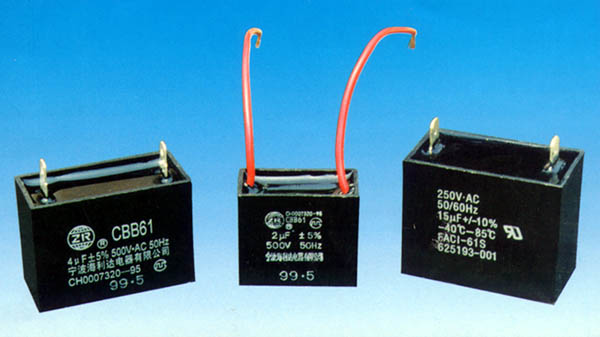

    CBB 61 TYPE CAPACITORS



    Usage: for electric fans, air-exhausting fans, electric pumps



    Key Specifications/Special Features:

    • Features:
      • Capacitance range: 1uf to 20uf
      • Capacitance tolerance: +/-5% +/-10%
      • Working voltage: 250 to 500 VAC
      • Temperature range: -40 to +70 degrees Celsius
      • Very small dissipation factor, small inherent temprature rise.
      • High insulation resistance.
      • Good capacitance stability.
      • Excellent self-healing property.
      • Safety and high reliability due to flame retardant plastic case enclosure and flame retardant opoxy resin endfill
    • Outer shape:
      • UL 94 V-O fire-retardant rectangular plastic case and epoxy-resin sealed
      • MO: without mounting design
      • MB: integral molded mounting foot on bottom
      • MT: metal or plastic mounting tab on top
    • Terminal:
      • PC: PVC insulated cord, AWG #18 to #22
      • TC: tin-plated copper wire, 0.6mm to 1.0mm
      • FT-I: 2 x AMP 187 or 250 fast-on
      • FT-U: 4 x AMP 187 or 250 fast-on



    Technical Characteristics
    ambient temperature -40~70 degrees Celsius
    rated voltage250~500V
    capacitance tolerance+/-5% +/-10%
    loss tangent<=0.002(50/60Hz)
    insulation level2Un+1kVAC not less than 2kVAC

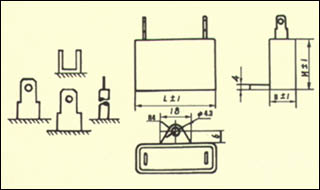

    Outline dimension
