BCMJ SERIES LOW-VOLTAGE SHUNT CAPACITORS

Usage: used in low-voltage inductive load circuit, compensating reactive power and improving power factor an electric quality.

Characteristics: small size and light weight, self-healing property and explosion proof.

Technical characteristics

Ambient temperature	-25~40 °C
Relative humidity	<= 85%
Altitude	<= 2000m
Capacitance tolerance	0~15%
Alternate Unbalance	<= 108%
Loss tangent	<= 0.0020
Voltage between poles and case	3000V·AC
Dielectric electric strength	1.75UnV·Ac
Max allowable voltage	1.1Un
Max allowable current	1.31n

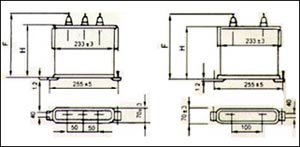

Outline dimension (mm)
